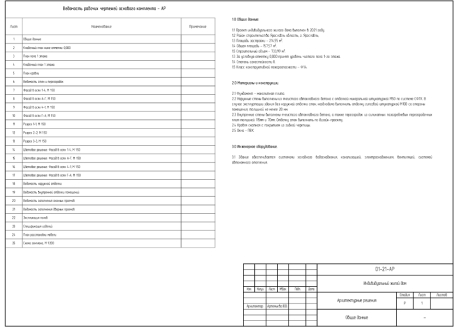

A list of working drawings, technical and economic characteristics of the object, a description of the structures used
When developing a project, the customer receives in electronic form a set of working drawings and a virtual model of the building being designed.
Composition of the working draft of the AR section (issued in PDF format)
During the design process, a 3D model of the building is created, which is provided to the customer in BIMx format. It can be studied by installing the “BIMx Viewer” application on a smartphone or computer. This model allows you to turn off elements by layers, study the scale and ergonomics of the premises, form a clearer idea of the volume and perception of the planned building.

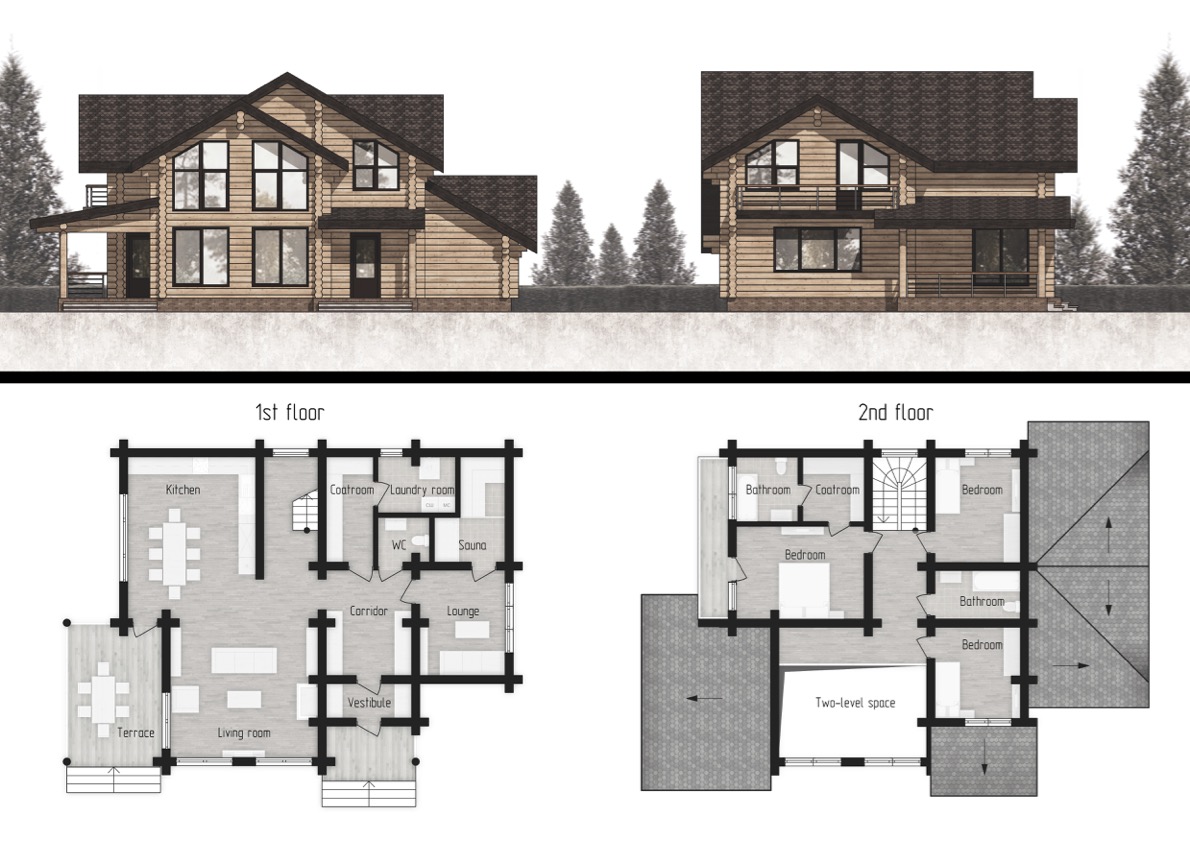

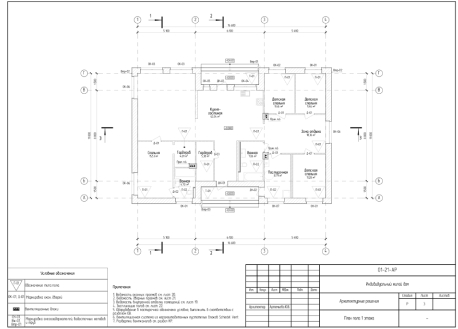

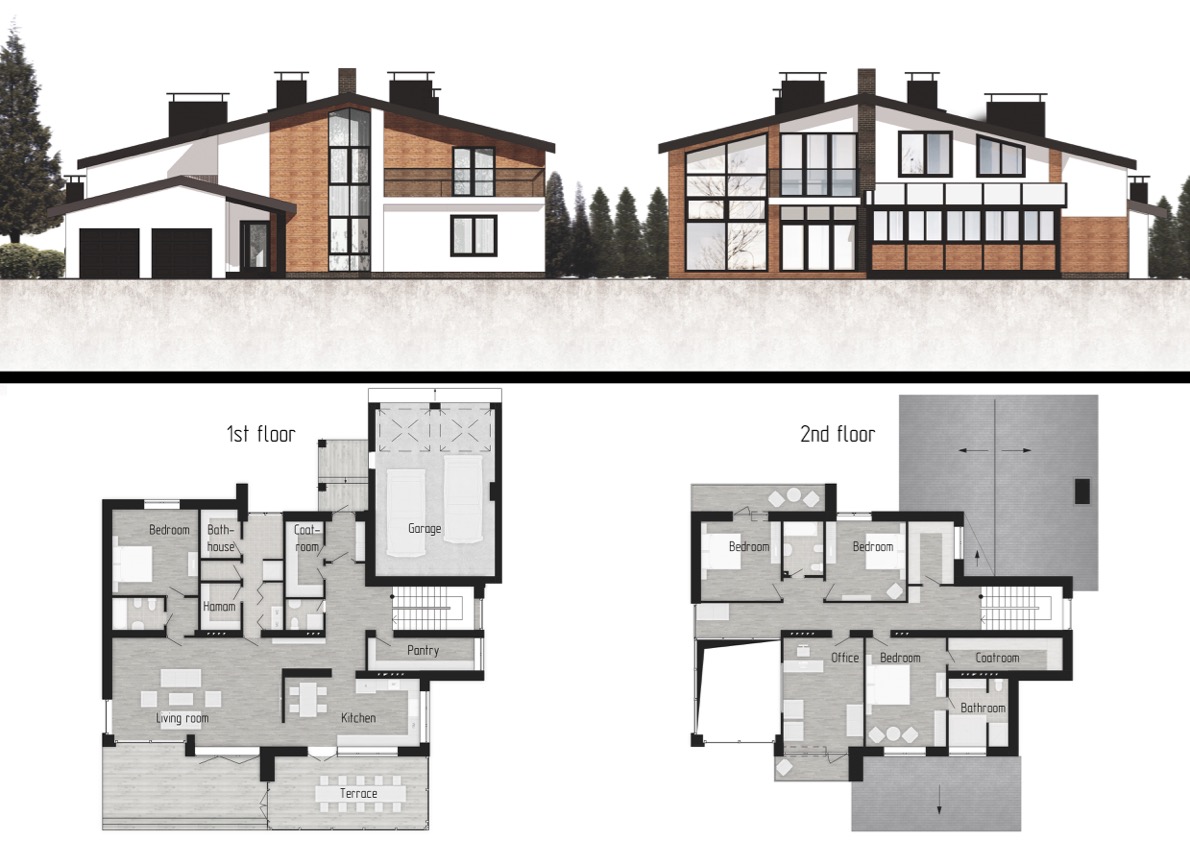

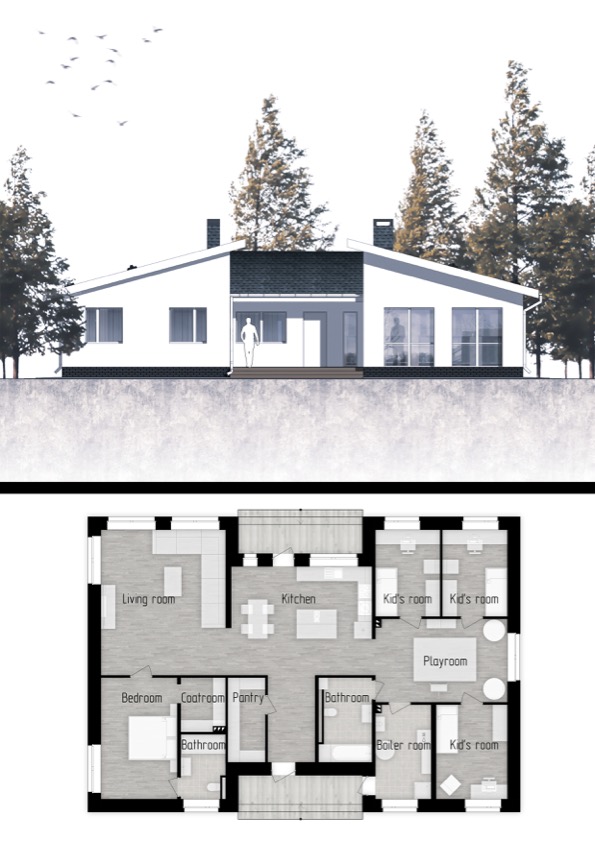

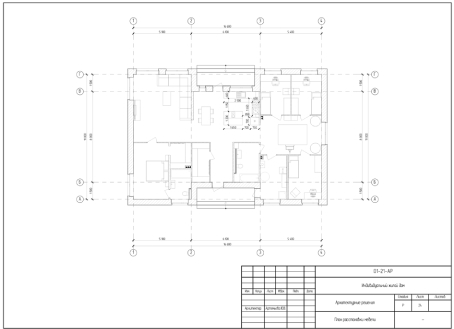

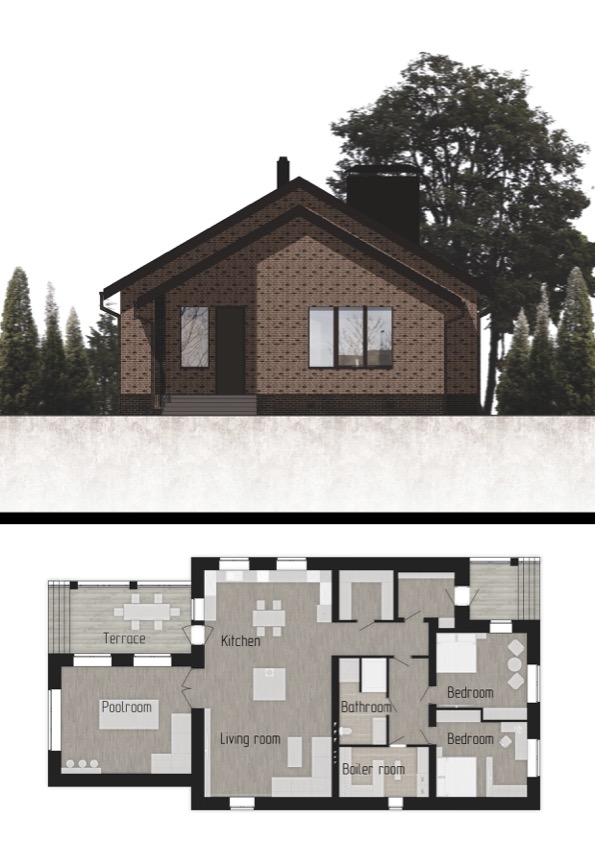

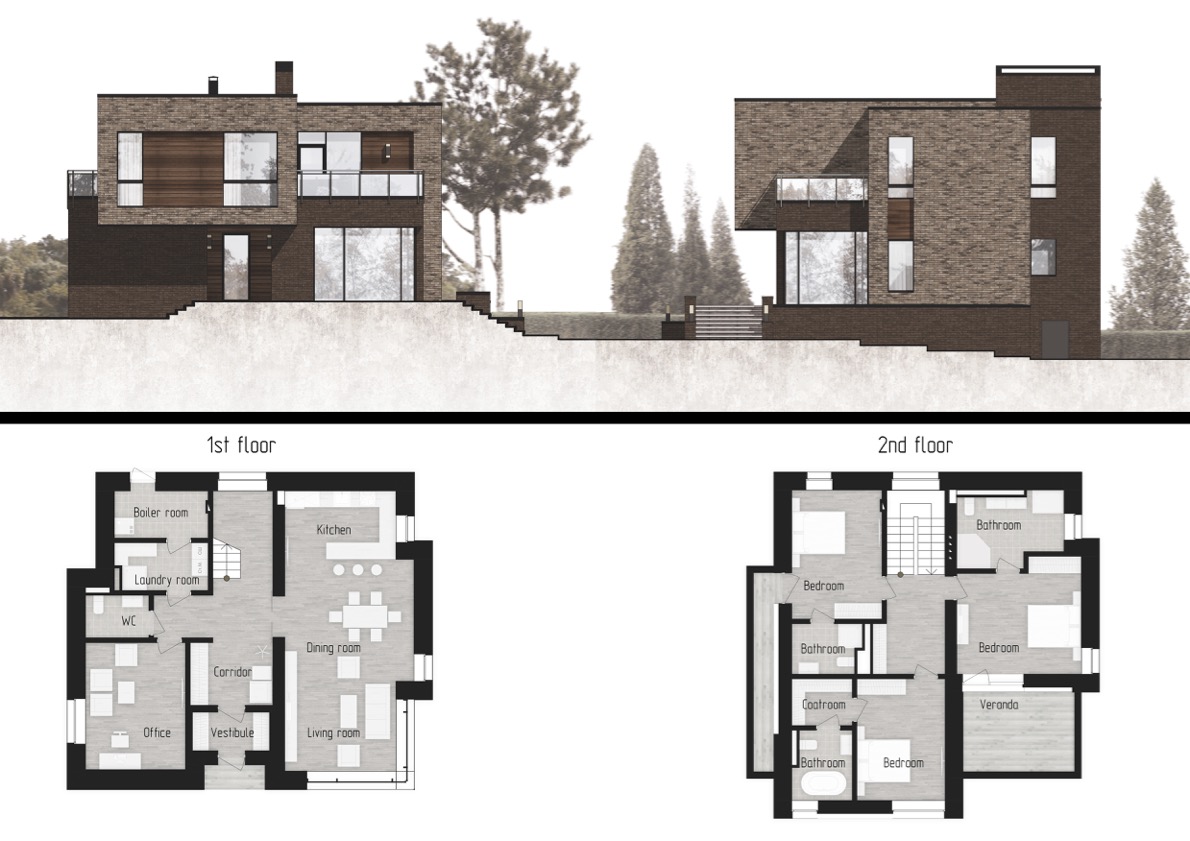

Floor plan
Displaying the layout of the building, designating the names of rooms, marking door and window openings, types of floors, marking products (fencing, drainage system, etc.)

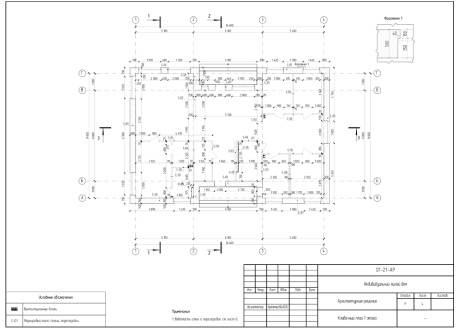

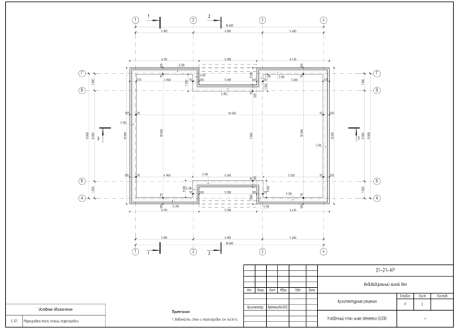

Masonry floor plan
Displaying the layout of the building without interior decoration of structures, dimensions according to these structures and their binding to each other and the grid of axes (if necessary – marking the types of walls and partitions)

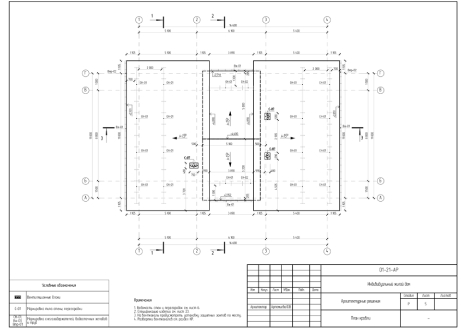

Roof plan
Displaying the roofing of the building, its geometry, binding relative to structural elements, product marking (fencing, drainage and snow retention systems, etc.)

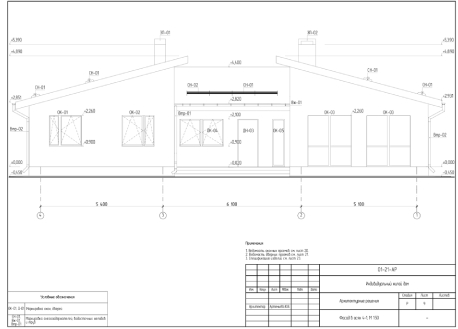

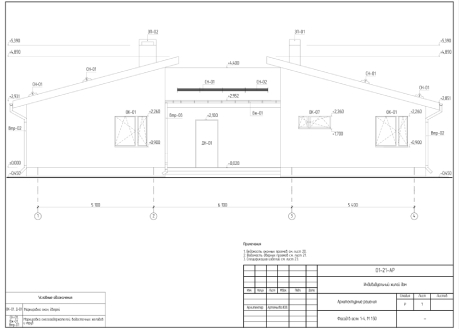

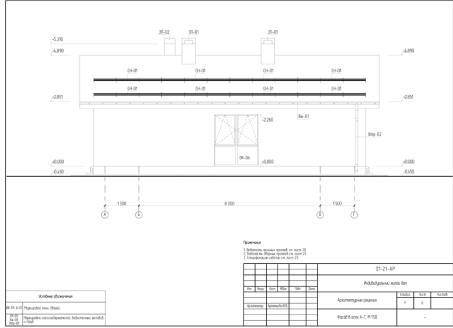

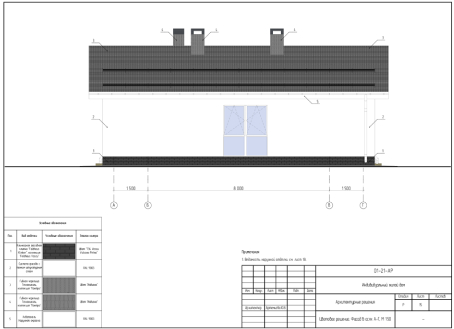

Facade in axes
Display of the orthogonal projection of the building on a vertical plane, elevation marks, marking of window and door openings, marking of products

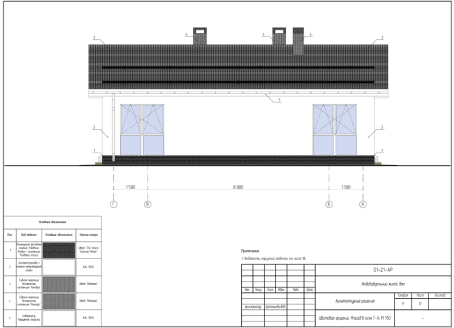

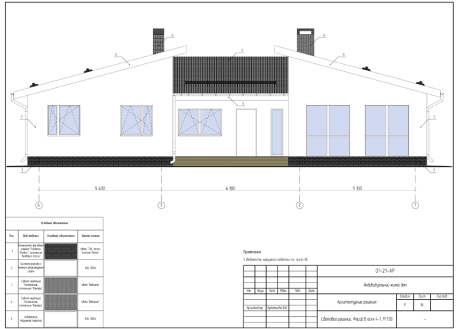

Color scheme of the facade
Facade with marking of types of exterior finishes, color scheme

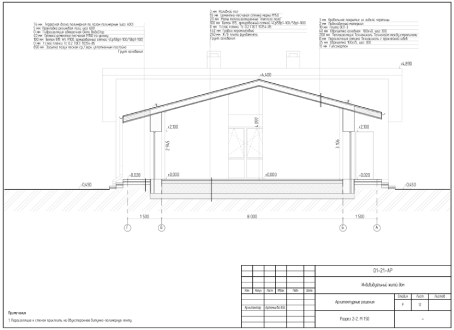

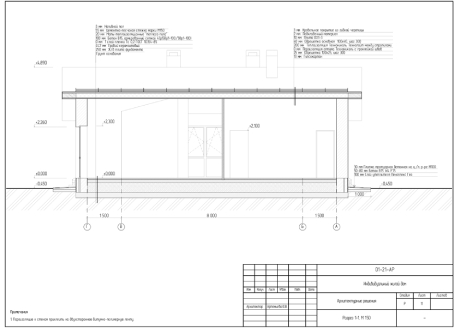

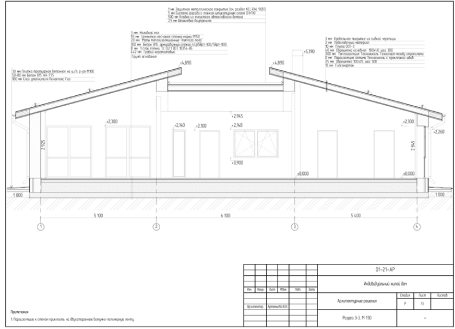

Section
A characteristic section of the building with a display of the structures used, with elevation marks and pies of structures

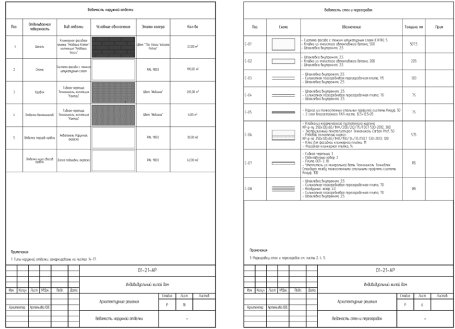

Sheet of exterior finish
A table showing the type of exterior finish, marking position, material used and surface area to be finished

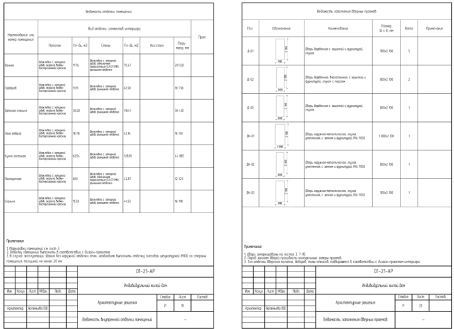

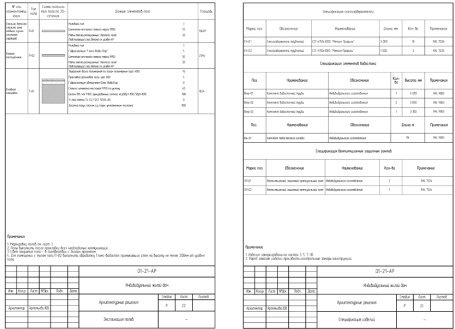

List of interior decoration of premises
A table showing the types of premises and their types of decoration (finishing walls, ceiling and bottom of walls)

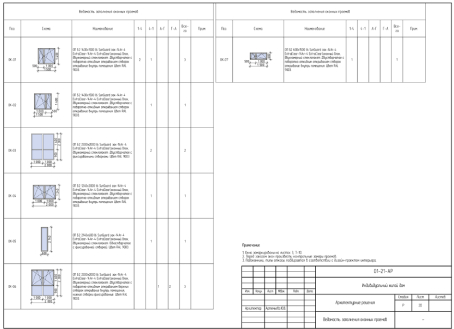

List of window openings
A table showing the marking and sketch of window openings, their geometric characteristics, the composition of double-glazed windows
Sheet of doorways
A table showing the markings and sketches of doorways, their geometric characteristics, leaf material and special characteristics depending on their location;
Explication of floors
A table showing floor pies, areas of these types, composition of structures and an indication of the premises where they are located
Specification of products
Tables displaying the quantitative and geometric characteristics of products, indicating their types (drainage, snow retention systems, etc.)
General layout scheme
Displaying the contour of the projected area with displaying the landing of the building, its coordinate binding along the characteristic points of intersection of the axes.
